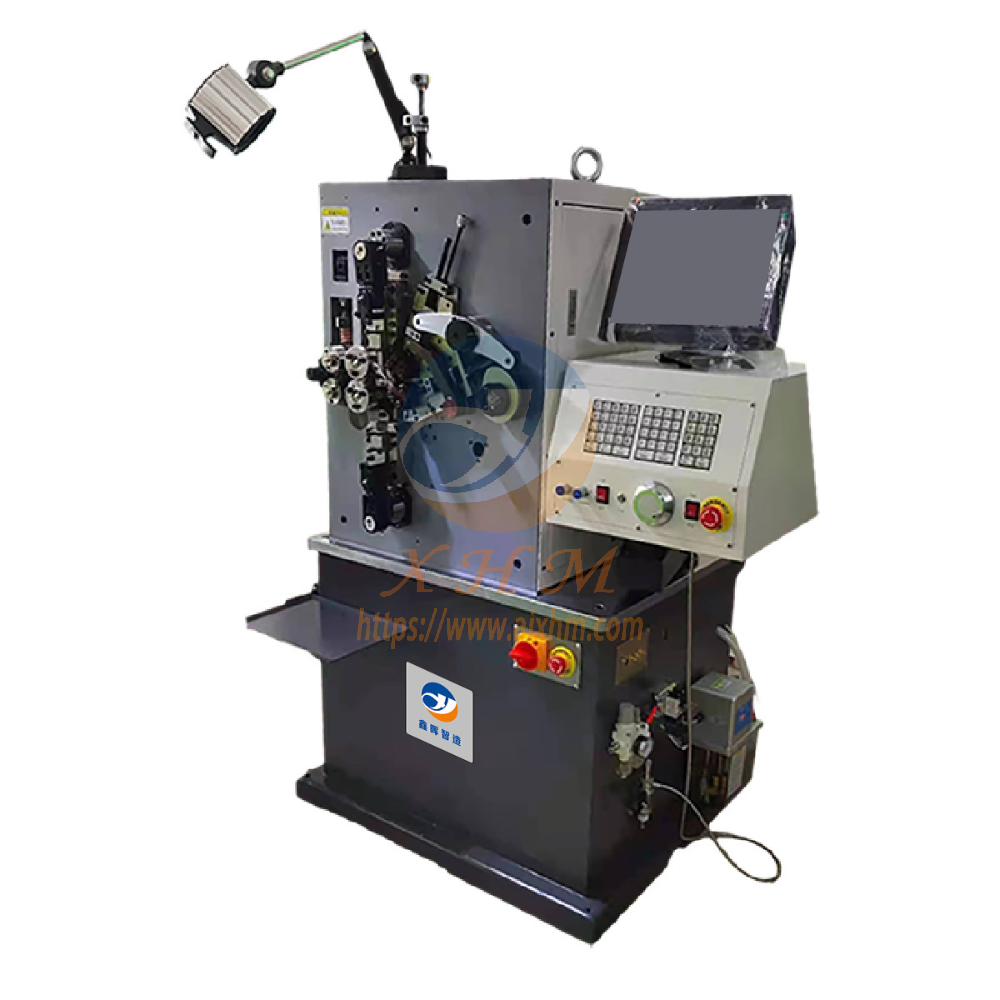

XHM-C425
1.Versatility:

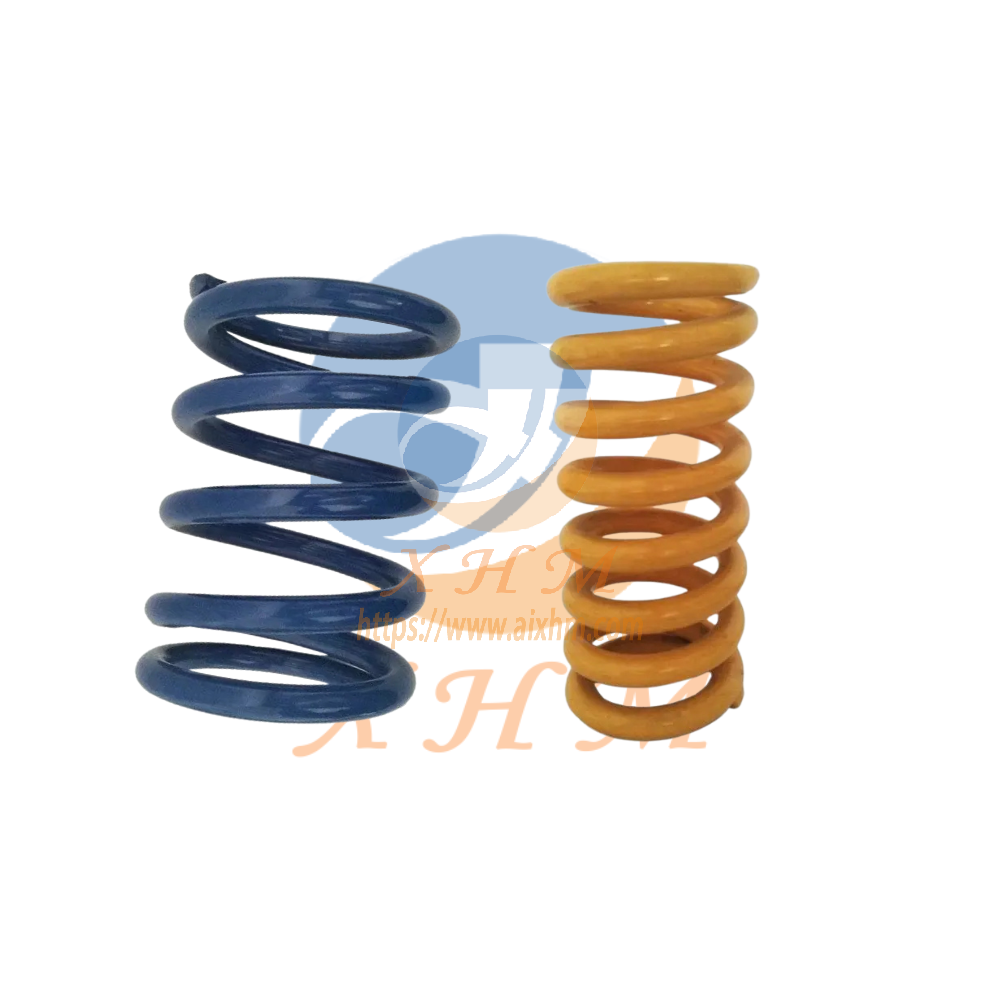

Supports a variety of spring types: compression springs, extension springs, torsion springs, shaped springs, etc.
Suitable for different wires: stainless steel, carbon steel, alloy steel, copper wire, etc. The wire diameter range is usually 0.7mm~2.5mm (depending on the model).
2. High precision and stability:
Processing accuracy: diameter tolerance ±0.05mm, pitch tolerance ±0.1mm, angular deviation ±1°.
High repetitive positioning accuracy ensures the consistency of mass production.
3.Automation and efficient production:
Fully automatic feeding, molding, cutting, with its own length detection device, can be automatically sorted according to the tolerance requirements, without manual labor.
Production speed: High-speed models can reach 200~500 pieces / minute (ordinary spring), significantly increase production capacity.
4. Flexible production capacity:
Short changeover time (usually 10~30 minutes), suitable for small-lot, multi-variety production to meet the demand for customization.
Supports a variety of spring types: compression springs, extension springs, torsion springs, shaped springs, etc.
Suitable for different wires: stainless steel, carbon steel, alloy steel, copper wire, etc. The wire diameter range is usually 0.7mm~2.5mm (depending on the model).
2. High precision and stability:
Processing accuracy: diameter tolerance ±0.05mm, pitch tolerance ±0.1mm, angular deviation ±1°.
High repetitive positioning accuracy ensures the consistency of mass production.
3.Automation and efficient production:
Fully automatic feeding, molding, cutting, with its own length detection device, can be automatically sorted according to the tolerance requirements, without manual labor.
Production speed: High-speed models can reach 200~500 pieces / minute (ordinary spring), significantly increase production capacity.
4. Flexible production capacity:
Short changeover time (usually 10~30 minutes), suitable for small-lot, multi-variety production to meet the demand for customization.
XHM-C425 Detail

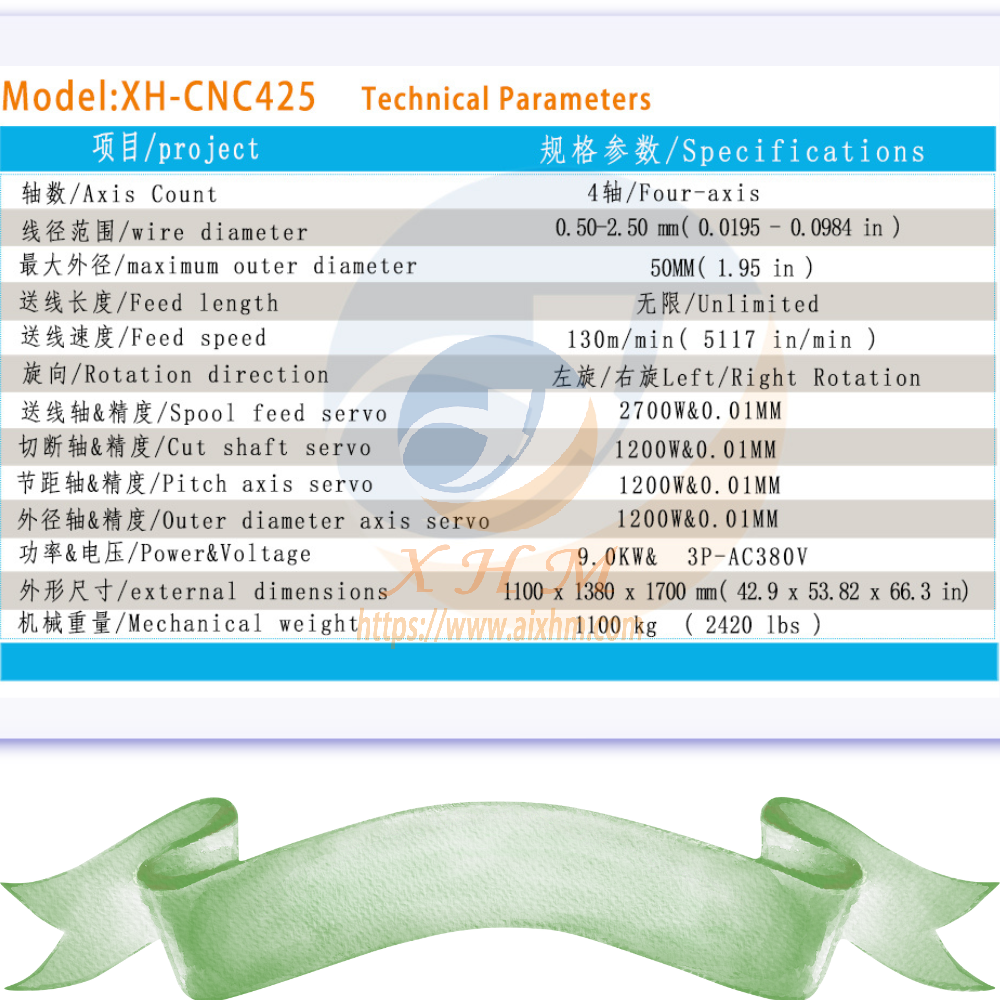

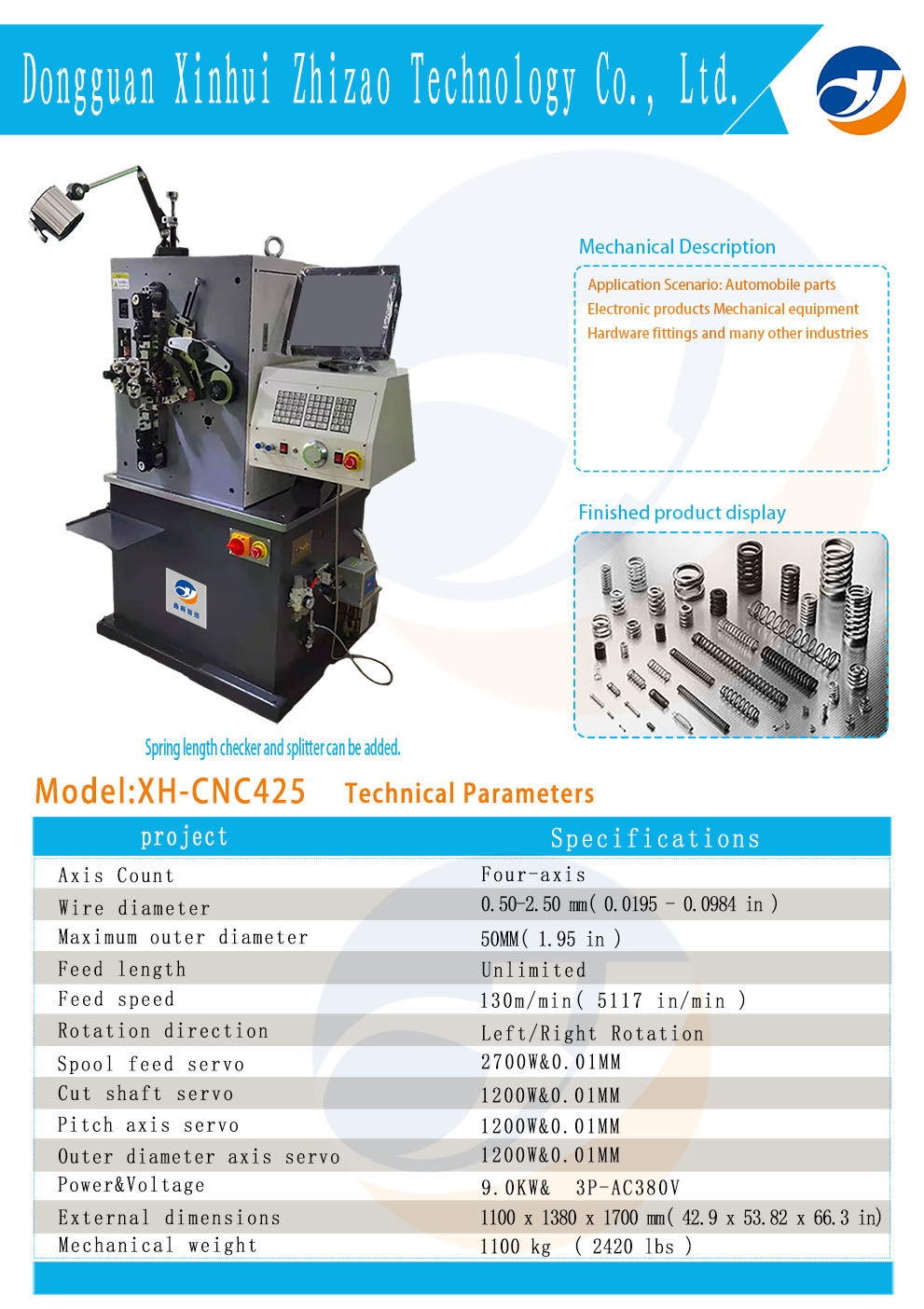

XHM-C425 Machine Parameters
Number of axes: four axis
Wire diameter range: 0.7-2.5mm
Maximum outer diameter: 50mm
Feeding length: unlimited
Rotation direction: left and right
Spool motor/precision: 2700W/0.01mm
Feed spool speed: 120m/min
Cutter shaft motor/precision: 1500W/0.001mm
Pitch axis motor/accuracy: 1500W/0.001mm
Outside diameter axis motor/precision: 1500W/0.001mm
Total power: 8.5KW
Working voltage: 380V
Overall dimension: 1150X1400X1800mm
Machine weight: 1200KG
