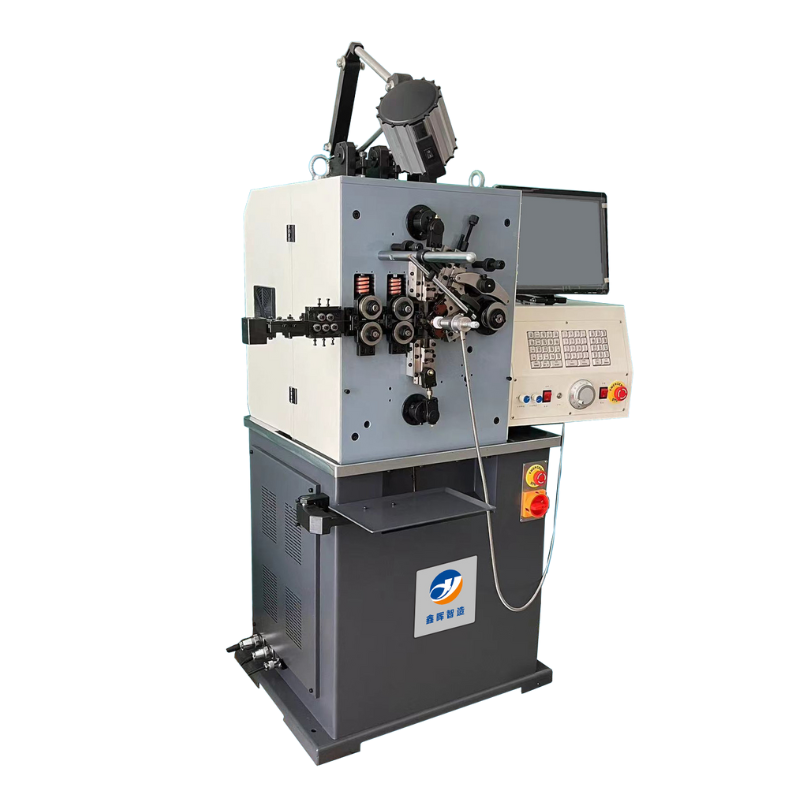

XHM-C416
1. Versatility

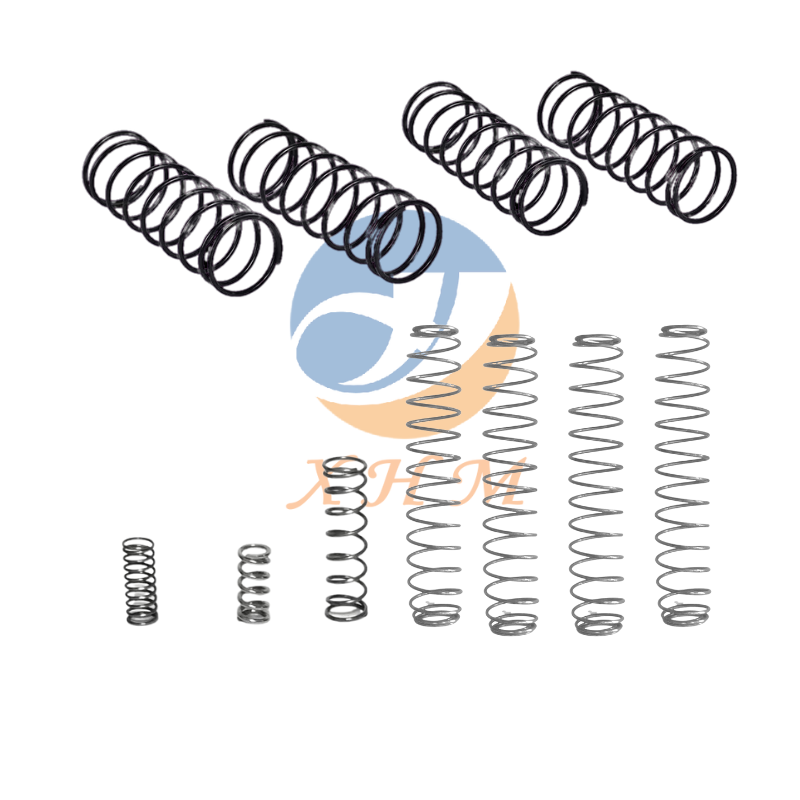

Supports a wide range of spring types: compression springs, extension springs, torsion springs, shaped springs, etc.
Suitable for different wires: stainless steel, carbon steel, alloy steel, copper wire, etc. The wire diameter range is usually 0.1mm~1.60mm (depending on the model).
2. High precision and stability
Processing accuracy: diameter tolerance ±0.05mm, pitch tolerance ±0.1mm, angular deviation ±1° (high-end models can reach higher accuracy).
High repetitive positioning accuracy ensures consistency in mass production.
3. Automation and Efficient Production

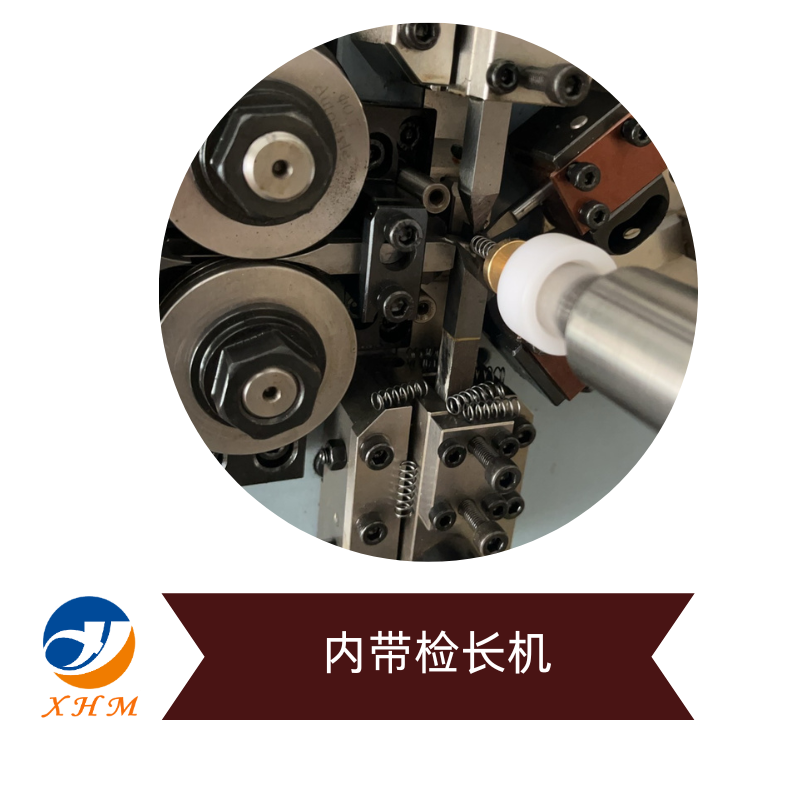

Fully automatic feeding, molding, cutting, with its own length detection device, can be automatically sorted according to the tolerance requirements, without manual labor.
Production speed: High-speed models can reach 200~500 pieces per minute (for normal springs), significantly increasing production capacity.
4. Flexible production capacity
Short changeover time (usually 10~30 minutes), suitable for small-lot, multi-variety production, and meet the demand for customization.
Supports a wide range of spring types: compression springs, extension springs, torsion springs, shaped springs, etc.
Suitable for different wires: stainless steel, carbon steel, alloy steel, copper wire, etc. The wire diameter range is usually 0.1mm~1.60mm (depending on the model).
2. High precision and stability
Processing accuracy: diameter tolerance ±0.05mm, pitch tolerance ±0.1mm, angular deviation ±1° (high-end models can reach higher accuracy).
High repetitive positioning accuracy ensures consistency in mass production.
3. Automation and Efficient Production
Fully automatic feeding, molding, cutting, with its own length detection device, can be automatically sorted according to the tolerance requirements, without manual labor.
Production speed: High-speed models can reach 200~500 pieces per minute (for normal springs), significantly increasing production capacity.
4. Flexible production capacity
Short changeover time (usually 10~30 minutes), suitable for small-lot, multi-variety production, and meet the demand for customization.
XHM-C416 Detail

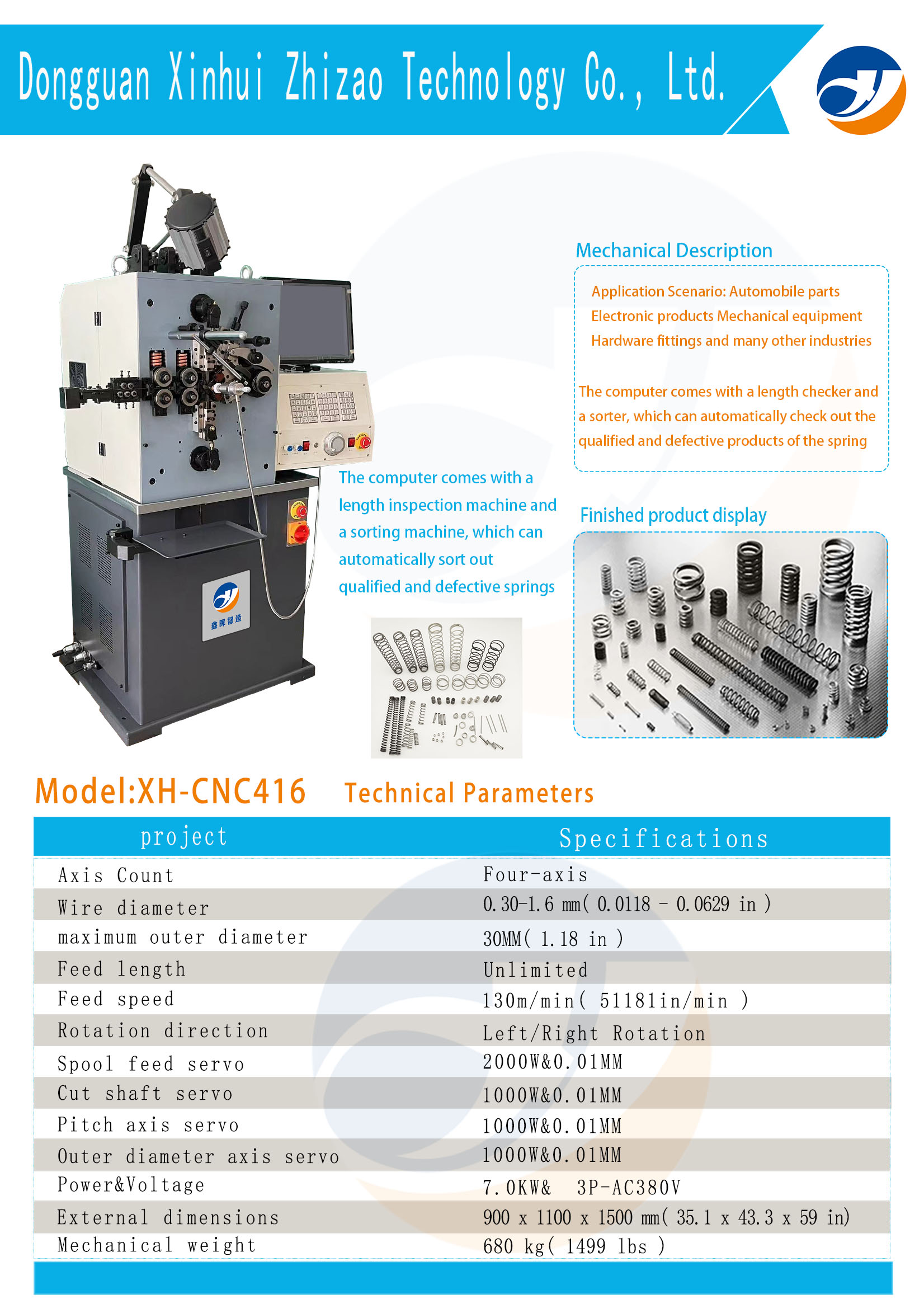

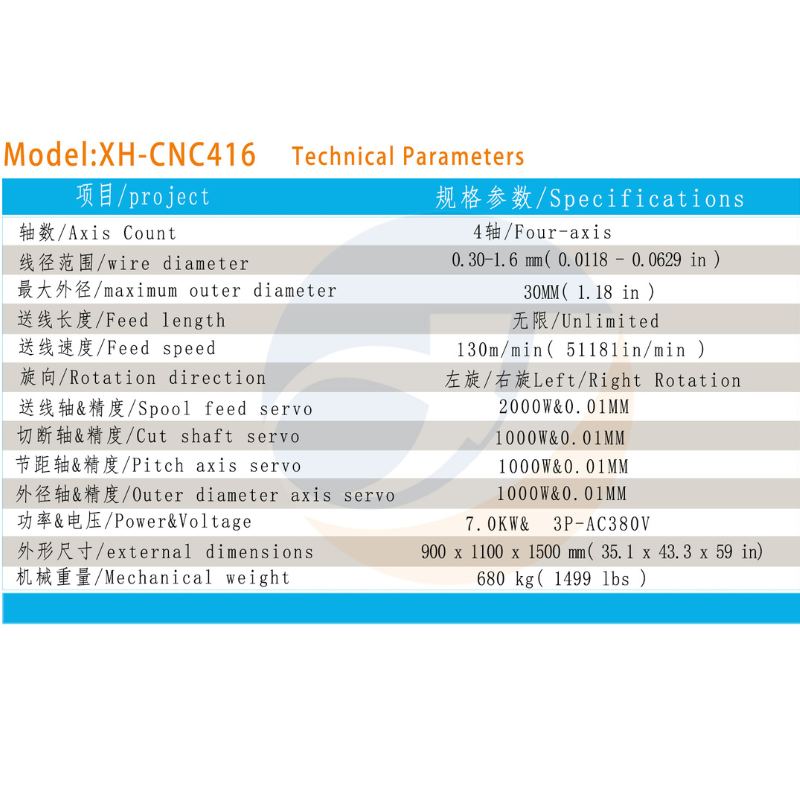

XHM-C416 Machine parameters
Number of axes: four axis
Wire diameter range: 0.2-1.6mm
Maximum outer diameter: 30mm
Feeding length: unlimited
Rotation direction: left and right
Spool motor/precision: 2000W/0.01mm
Feed spool speed: 130m/min
Cutter shaft motor/accuracy: 1000W/0.001mm
Pitch axis motor/accuracy: 1000W/0.001mm
Outside diameter axis motor/precision: 1000W/0.001mm
Total power: 5KW
