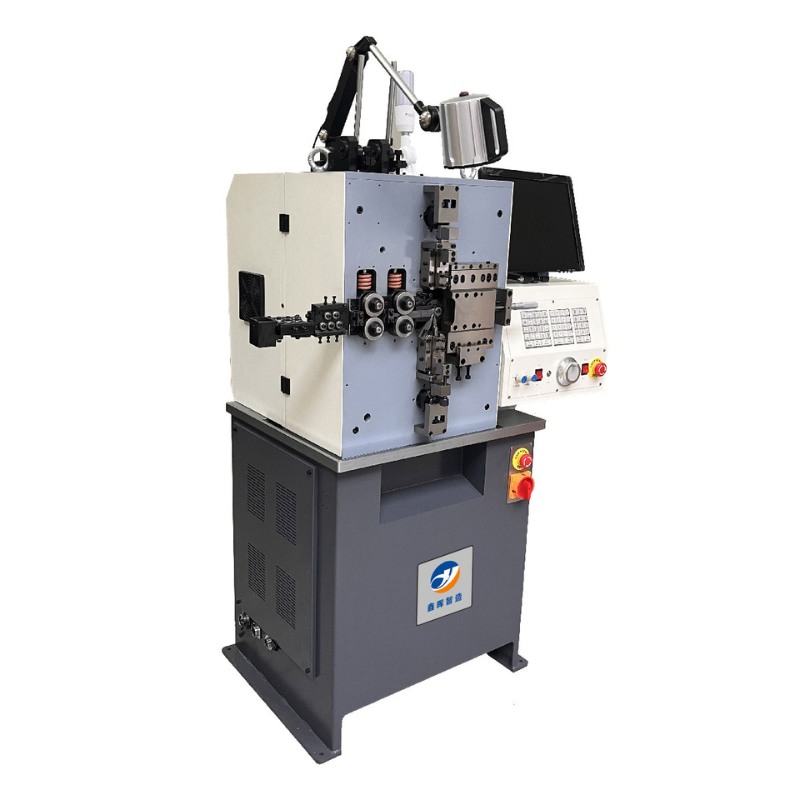

XHM-R410
1. Versatility

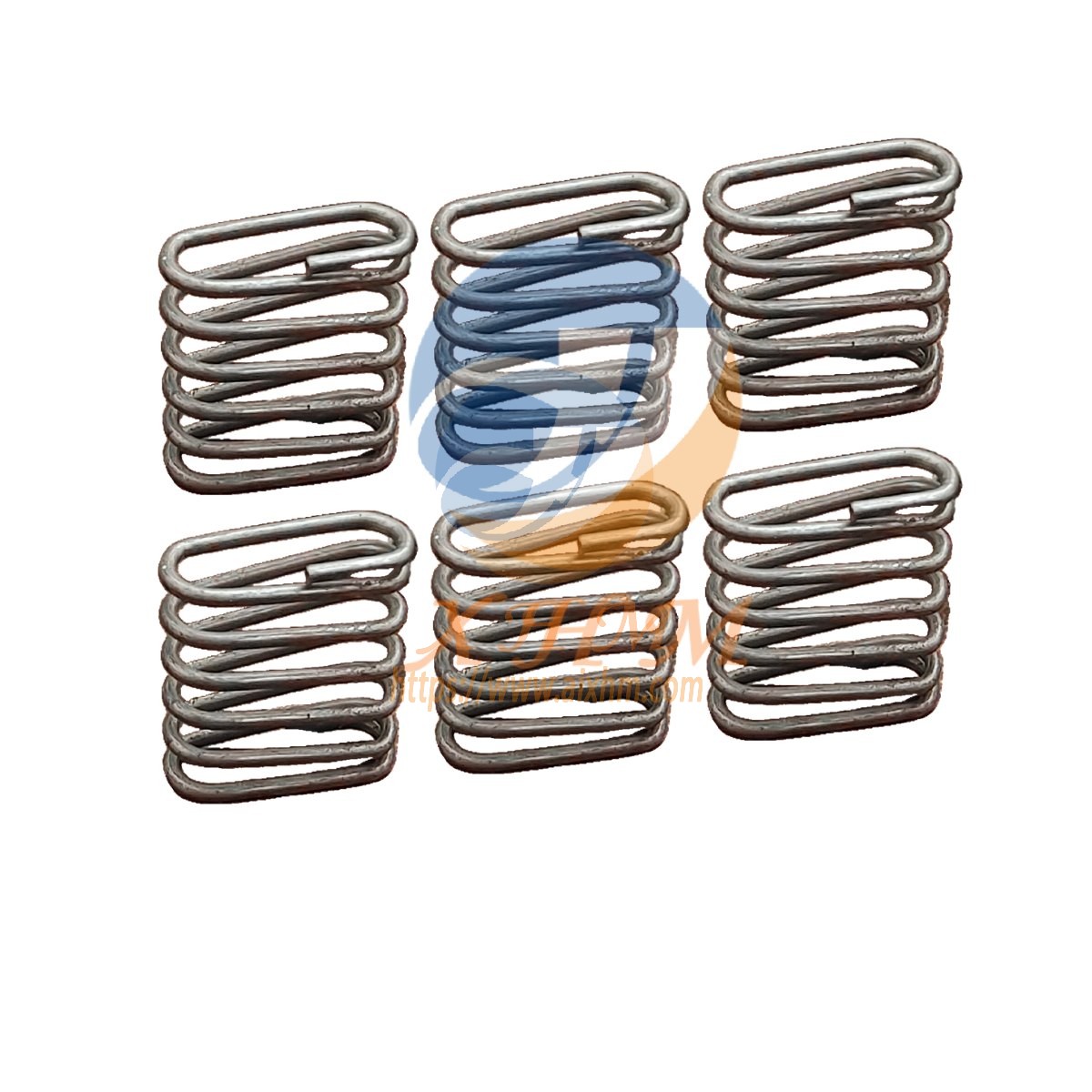

This machine is only customized model for flat springs, only suitable for flat springs exclusively.
Suitable for different wires: stainless steel, carbon steel, alloy steel, copper wire, etc. Wire diameter range is usually 0.3mm~1.00mm (depending on the model).
2. High precision and stability
Processing accuracy: diameter tolerance ±0.05mm, pitch tolerance ±0.1mm, angular deviation ±1°.
High repetitive positioning accuracy ensures consistency in mass production.
3. Automation and efficient production
Fully automatic feeding, molding and cutting, with its own length detection device, which can be automatically sorted according to the tolerance requirements without manual labor (the detection device is optional).
Production speed: High-speed models can reach 20~60 pieces per minute (depending on the spring), greatly improving production capacity.
4. Application industry products
Military products, electronics, automobiles, fiber optic interface springs, medical and health care, etc.
This machine is only customized model for flat springs, only suitable for flat springs exclusively.
Suitable for different wires: stainless steel, carbon steel, alloy steel, copper wire, etc. Wire diameter range is usually 0.3mm~1.00mm (depending on the model).
2. High precision and stability
Processing accuracy: diameter tolerance ±0.05mm, pitch tolerance ±0.1mm, angular deviation ±1°.
High repetitive positioning accuracy ensures consistency in mass production.
3. Automation and efficient production
Fully automatic feeding, molding and cutting, with its own length detection device, which can be automatically sorted according to the tolerance requirements without manual labor (the detection device is optional).
Production speed: High-speed models can reach 20~60 pieces per minute (depending on the spring), greatly improving production capacity.
4. Application industry products
Military products, electronics, automobiles, fiber optic interface springs, medical and health care, etc.
XHM-R410 Detail

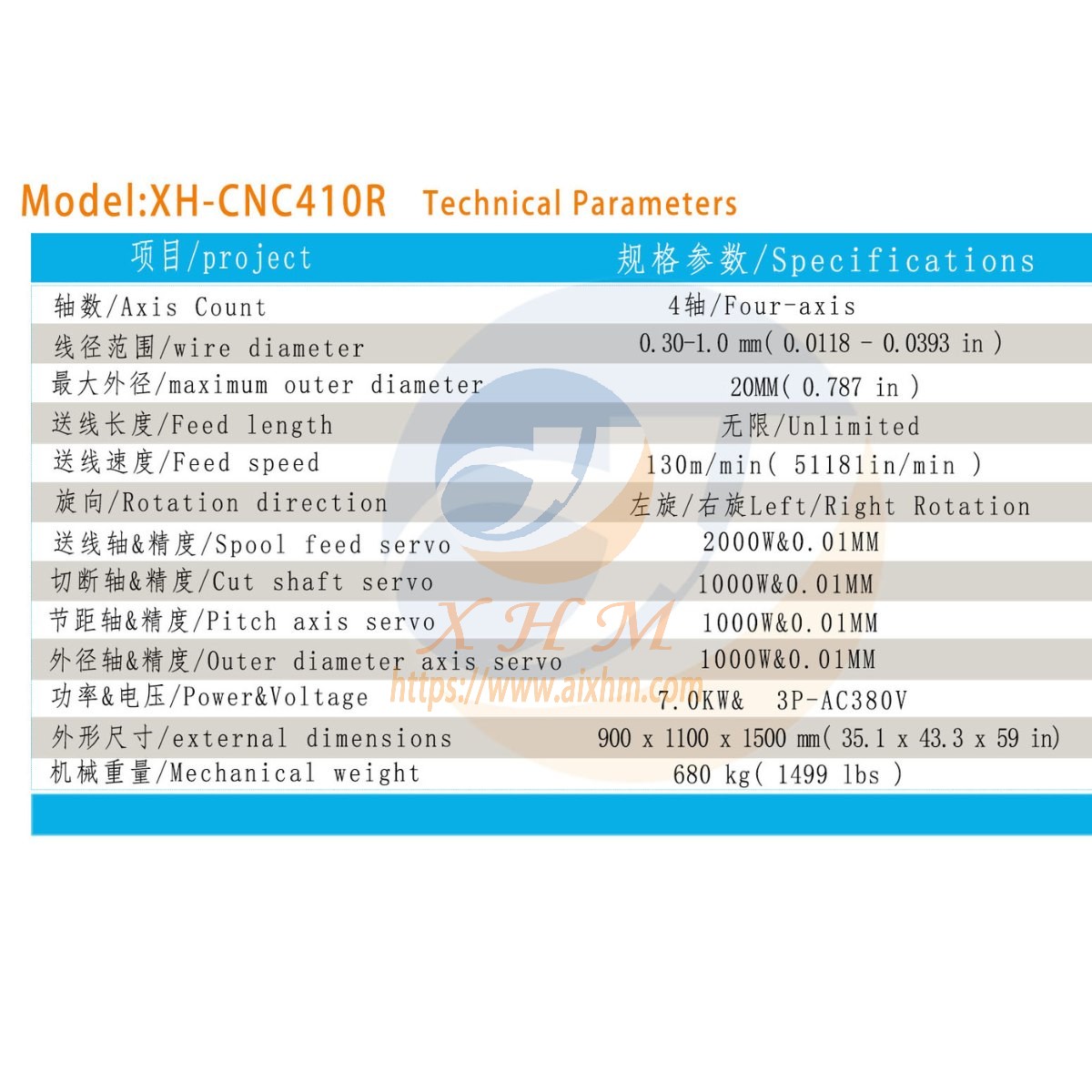

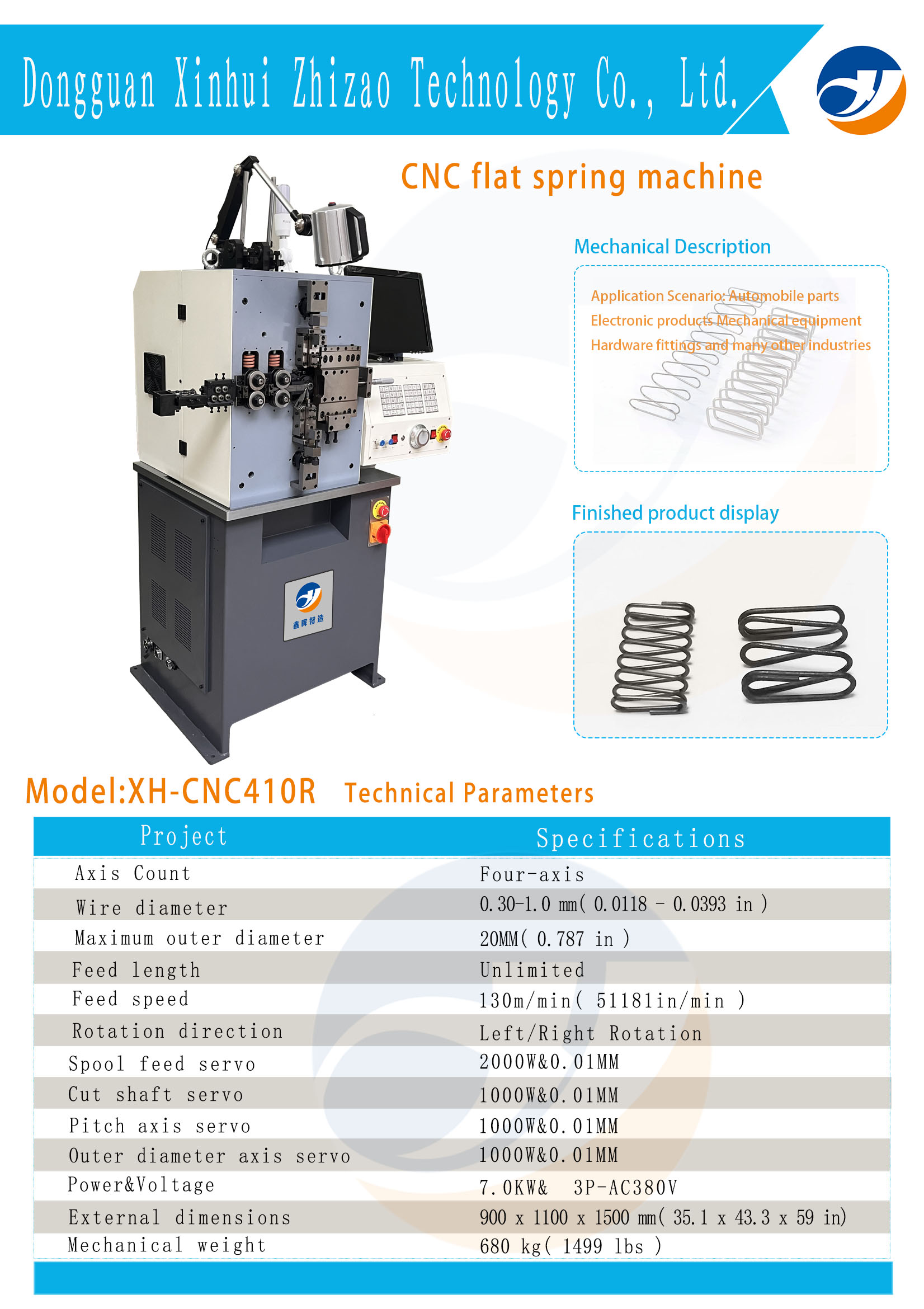

XHM-R410 Machine parameters
Number of axes: 4 axis
Wire diameter range 0.3-1.0 mm
Maximum outer diameter: -------
Feeding length: unlimited
Direction of rotation: left and right
Spool motor/accuracy: 2000W/0.01 mm
Feed speed: 120 m/min
Cutting axis motor/accuracy: 1000W/0.001 mm
Pitch axis motor/accuracy: 1000W/0.001mm
Guide wheel motor/accuracy: 1000W/0.001mm
Total power: 5KW
